ROTOR SLOTS
Description
A slotted rotor shaft, also defined slotted turbo-generator rotor shaft and often referred to as a "rotor slot", is a forged and precision-machined part used in 2-pole synchronous generators and 2-pole turbo-generator applications. The name came from the long axial winding slots, machined along the rotor axis.
These shafts are typically used in gas or steam turbine 2-pole generators and turbo-generators, synchronous generators, condensers, and motors.
Their role is both mechanical and electromagnetic: they maintain alignment, transmit torque, and enable the generation of the rotating magnetic field inside the stator. The magnetic field structure is built inside the rotor slots, where insulated conductors are positioned and retained, while the rotor teeth between the slots help maintain mechanical continuity, magnetic behavior, and rotor symmetry.
Function and Features
Unlike a salient-pole shaft, a slotted rotor shaft has a more compact cylindrical geometry. The slots house the rotor windings, usually made of insulated conductive material, which generate the magnetic field when supplied by the excitation system.
The slotted rotor shaft must rotate with minimal run-out and controlled vibration. Its geometry directly affects air-gap stability, bearing alignment, balance, cooling efficiency, and long-term machine reliability.
The typical structre of a slotted rotor shaft includes a cylindrical body with long longitudinal winding slots, rotor teeth between them, DE (drive end) and NDE (non drive end) ends, bearing journals, an exciter shaft end, keyways, shoulders and threaded or auxiliary holes.
Due to their large size and heavy weight, often reaching several or even dozens of tons, slotted rotor shafts require precise handling, lifting, alignment, setup, and machine preparation. Ismec’s experience in large-scale machining allows these operations to be effectively planned and managed.
To withstand rotation, fatigue, vibration, centrifugal forces, torsional loads, and bending stresses, slotted rotor shafts require high-reliability forged steels such as 34CrNiMo6 and 42CrMo4, or proprietary materials.
COUPLING FLANGE
FAN MOUNTING SEAT
THREADED FIXING HOLES
BEARING JOURNAL
KEYWAY
LONGITUDINAL SLOTS
CNC Machining of Rotor and Slots
The production of a pole shaft requires a controlled sequence of CNC turning e CNC milling, rough machining, drilling, tapping, finishing, grinding, and testing.
CNC turning is used to machine diameters, bearing journals, shoulders, DE/NDE ends, and auxiliary interfaces.
CNC milling is the most distinctive phase. It is used to machine the axial winding slots, T-slots where required, rotor core areas, reference surfaces, drilling patterns, and non-axisymmetric geometries. The main challenge is maintaining geometric coherence between axis, rotor core, exciter axis, bearing journals, slots, and holes.
Ismec’s milling and boring capabilities allow the machining of large rotor bodies with long axial features and complex patterns.
Slots machining requires strict control of depth, width, symmetry, surface finish, chip evacuation, vibration, tool stability, and deformation caused by material removal. This approach ensures precision, repeatability, controlled run-out, and correct symmetry, supporting mechanical strength, stability, vibration control, and reliable electromagnetic performance.
Final controls are essential before final assembly, and they may include dimensional inspection, bearing journal checks, roughness measurement, slot verification, thread and hole-position inspection, UT, MT/PT testing, and traceability records.

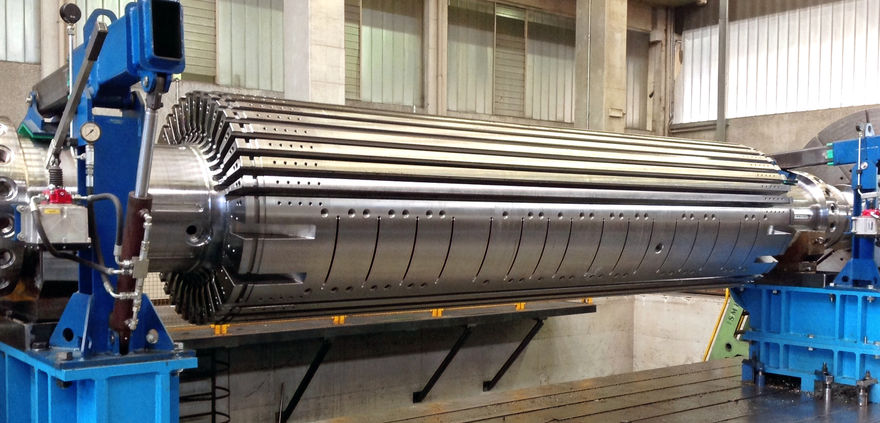

Here are some examples of Slotted Rotor Shafts
